Introduction
Motherboard short circuits are a common fault encountered in mobile phone repair, typically manifesting as a failure to power on, rapid battery drain, or abnormal overheating. These issues are frequently triggered by liquid damage, power surges, or component aging. Consequently, precise leakage detection and analysis are essential to avoid the indiscriminate replacement of components. In modern repair practices, technicians often utilize tools such as the IIT ShortCam infrared thermal imager and the SUNSHINE DC regulated power supply; these devices enable the rapid localization of short circuits and leakage points, and—when combined with standardized repair protocols—significantly enhance the efficiency of diagnosing and resolving complex motherboard faults.
Understanding Motherboard Short Circuit Issues and Symptoms
A motherboard short circuit occurs when current flows in a random path, usually due to a broken capacitor, IC, or diode. This creates an asymmetric warmth and plain modern charm that can prevent your phone from booting or cause it to shut down instantly. In many cases, panels may also show signs of overheating near certain components.
Common signs and symptoms include rapid battery drain, no power feedback, or temperature even when the device is idling. Technicians regularly check the common current on the power distribution to diagnose the issue. Understanding these characteristics before starting any treatment is important because it can reduce the defective space and avoid removing unusable elements.
Necessary equipment and preparation for thermal imaging diagnosis
Proper guidance and equipment selection are critical to accurate results before treatments begin. The main gear has IIT ShortCam Infrared Thermal Imager for temperature detection, SUNSHINE Digital DC power supply for controlled voltage injection, and SUNSHINE Power supply test cable for secure short connection Secure soldering icons Requires precise anti-static coating stream-glass tweezers.
In addition, the motherboard is cleaned with isopropyl alcohol to remove any dirt or liquid residue. Set up your workbench in a solid environment and ensure proper lighting. SUNSHINE Digital DC The power supply should be set to a low starting voltage, usually from 1V rounded to at least one.5V, with power limited to save you additional losses. This level of training ensures a safe and controlled treatment from the beginning.
levels of consumption-phase decline and initial surveillance
The first step in the recovery method is to carefully disassemble the mobile phone. Remove the lower back cover with a plastic pry tool to keep out scratches or damage. Then register the battery immediately to avoid an accidental fast circuit at some stage of the repair. Next, use a precision screwdriver, remove protective plates, and expose the motherboard for inspection.
Once the panels are in place, visually inspect them under a proper benign or microscope. Look for signs of burns, corrosion, or damaged parts. In many cases, moisture damage leaves insoluble or white residue around affected areas. This initial inspection facilitates the perception of visual defects before moving to advanced diagnostic tools, saving time and effort within the restoration methodology .

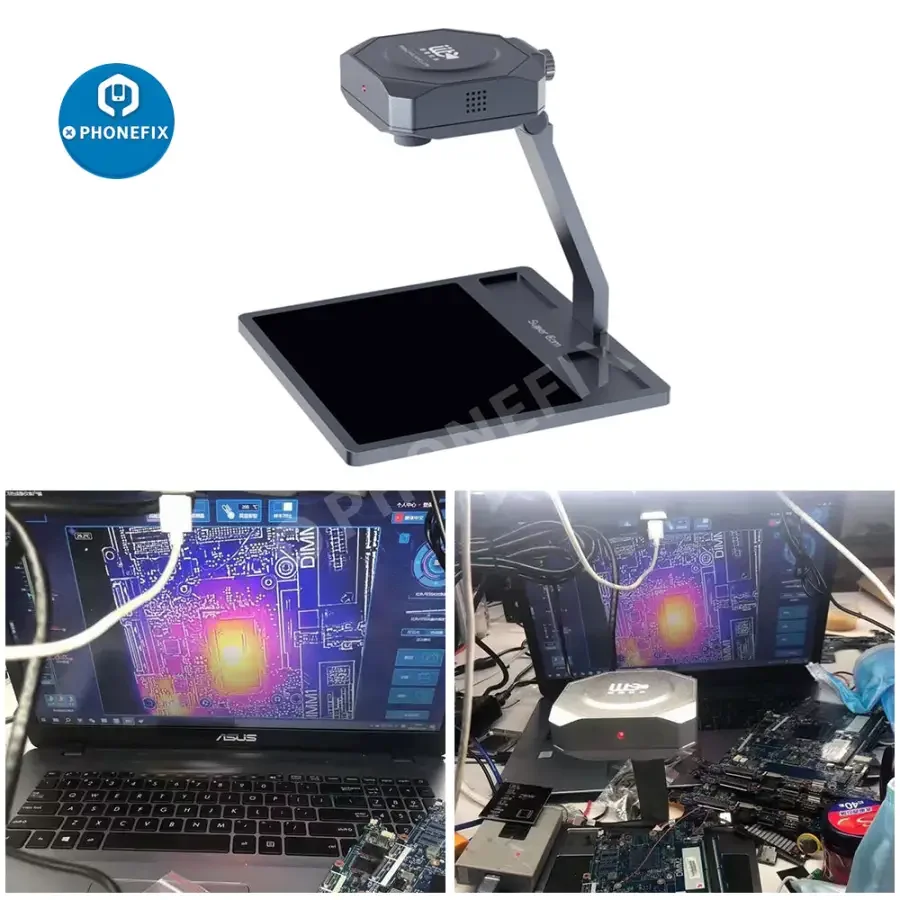

Use IIT ShortCam infrared thermal camera for fault detection
The IIT ShortCam Infrared thermal camera plays an important role in quickly detecting overheated connectors on motherboards. When the use of low-voltage DC power supply is implemented, the short element will heat up faster than the others, and the thermal reflector visually highlights this nonspecific temperature rise This makes the fault detection much faster and extra accurate compared to calibration strategies.
For proper use of the thermal camera, connect the board to a SUNSHINE Digital DC Power Supply and periodically increase the voltage even as the display on the monitor. Limit the flow to stay away from damage. The IIT ShortCam Infrared thermal camera truly shows the hot spots, and helps you detect whether the fault is in the capacitors, power ICs or filters or not. This step is critical for specific diagnosis and minimizes pointless component replacement.
Power Injection with SUNSHINE Digital DC Power Supply
Once the suspicious area is confirmed, power injection is used to diagnose the precisely cut case. SUNSHINE digital DC power distribution allows voltage manipulation and modern transport to properly isolate faults. The SUNSHINE Power Supply Test Cable is used in conjunction with the motherboard’s battery terminals to immediately verify its robustness and security.
Start by keeping the voltage at a low level, around 1V, and use a slow step while monitoring the modern train. If there is an abnormal rise in recent times, the short circuit is confirmed. In this technique, you could gently touch the additives with alcohol; The one that evaporates the fastest is usually the wrong one due to heat technology. This technique is usually powerful for specific fault isolation in motherboard degree repair.
Repair, Reflow, Test, and Reassemble at the Component Level
After the fault is identified, the next step is repair or replacement. Use ESD-safe tweezers with recommendations good enough to terminate small connectors containing capacitors or ICs. Use hazardous non-smooth currents near fractures to ensure clean heat dissipation and easy solder connections. Depending on the type of component, a hot air station should be installed between 320 and 380 degrees Celsius, with gentle ventilation to stay away from blowing near the circuit .
Once the fault is replaced, repeat the float method if the adjacent solder joint needs to be stronger. After the repair, reconnect the board to the SUNSHINE Digital DC power supply and check the power consumption daily. If the entire part looks robust, use it with a complete gadget test that includes startup, charging, and network assessment. Carefully reassemble the phone, making sure all connectors are properly inserted and screws are properly tightened.
Conclusion:
Mobile phone motherboard repair requires the integration of micro-soldering techniques with high-precision diagnostic equipment to ensure the quality and stability of the repair. The IIT ShortCam infrared thermal imager and SUNSHINE DC regulated power supply facilitate the rapid localization of faults—thereby preventing “blind” repairs—and significantly boost efficiency while reducing rework rates. By adhering to standardized procedures—including disassembly, thermal imaging inspection, voltage injection, and functional testing—technicians can efficiently address complex chip-level issues, achieving precise repairs for motherboard short circuits and leakage faults.
